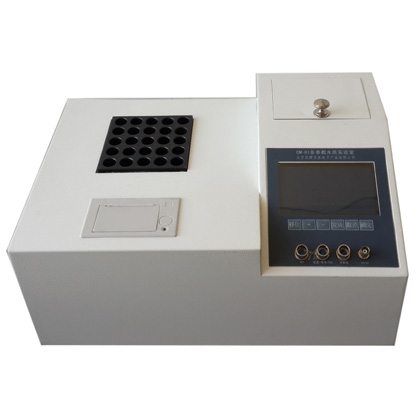

CM-01 multi-parameter water quality determinator
Item name: water quality laboratory
Item No: CM-01
Product brand
：
Directions: rivers, centralized drinking water sources, lakes and reservoirs, surface water,
Iron and steel industry, oil processing industry, organic raw materials, plastic rubber
Rubber, pharmaceutical production, dyestuff chemical industry, synthetic detergent, chemical fertilizer
Pesticide, electroplating textile, food processing, beverage manufacturing industry, hotel health
Raw materials, domestic sewage and hospital sewage, scientific research, etc..
(1) humanized operation, special customized light source, simple operation, fast;
(2) the instrument has the factory and user - defined double calibration function, after the closing of the memory zero calibration, no need for each measurement and then zero calibration instrument;
(3) a special computer chip, which can directly display the concentration of the measured water sample;
(4) the design of the waterproof sample colorimetric tank, the prefabricated reagent, has the special light avoiding equipment to ensure the accuracy and repeatability;
(5) suitable for sewage / wastewater, cooling water / boiler water, water treatment water / drinking water, etc..
Measuring accuracy: 5%
Repeatability: 3% all
Chlorine resistance: 10000mg/L (COD)
Data management: Chinese character / color LCD screen
Temperature control range: room temperature to 199 DEG C
Batch quantity: 25 water samples (with self digestion device)
To adapt to the environment: temperature: 5 to 35 DEG C / humidity: less than 80%
Power type: 220V/ maximum power consumption: 100W
Weight: 4.5Kg
Dimensions: 320mm*270mm*180mm
Serial number | Measurement index | measuring rangemg/L | Serial number | Measurement index | measuring range mg/L | Serial number | Measurement index | measuring range mg/L |
1 | COD（low） | 2～150 | 2 | COD（medium） | 100～2500 | 3 | COD（hig） | 2000～15000 |
4 | ammonia nitrogen（low） | 0.01～5.00 | 5 | ammonia nitrogen（high） | 0.1～125.00 | 6 | total phosphorus（low） | 0.00～2.5 |
7 | total phosphorus（high） | 0.5～125.0 | 8 | Iron ion | 0.00～5.00 | 9 | turbidity | 0NTU～1000NTU |
10 | copper ion | 0.00～3.00 | 11 | residual chlorine | 0.00～5.00 | 12 | chroma | 0PCU～500PCU |
13 | Manganese ion | 0.00～5.00 | 14 | nitrite | 0.00～2.50 | 15 | Six valence chromium | 0μg/L～1000μg/L |
16 | Nitrate | 0.0～100.0 | 17 | chlorine dioxide | 0.00～2.00 | 18 | low conductivity | 0.0mS/cm～200mS/cm |
19 | Sulfur ion | 0.00～1.00 | 20 | pH | 0～14 | 21 | High conductivity | 0.0μS/cm～1000μS/cm |
22 | ORP | ±2000mV | 23 | phosphate | 0.00～5.00 | 24 | salinity | 0.0度～50.0度 |
25 | temperature | 0.0℃～70.0℃ | 26 | dissolved oxygen | 0.0～20.0 | 27 | TDS | 0.00g/L～200.0g/L |
28 | Silver ion | 0.001～1.000 | 29 | molybdenum | 0.0～40.0 | 30 | Calcium and magnesium | 0.00～400/150 |
31 | Total hardness | 200～500 | 32 | Aluminum ion | 0.01～1.00 | 33 | Chloride ion | 0.0～20.0 |
34 | Fluoride ion | 0.00～2.00 | 35 | potassium ion | 0.0～200 | 36 | Total chlorine | 0.0～10.0 |
37 | Total alkalinity | 0～200 | 38 | Silicon dioxide | 0.01～2.00 | 39 | sulfate | 0～150 |
40 | cyanide | 0.00～0.30 | 41 | iodine | 0.0～12.5 | 42 | Zinc ion | 0.00～3.00 |
43 | molybdate | 0.0～60.0 | 44 | bromine | 0.01～8.00 | 45 | Hydrazine | 0μg/L～400μg/L |
46 | Total nitrogen (low) | 0.5～25 | 47 | Total nitrogen (high) | 10～150 | 48 | Anionic surfactant | 0.00～3.00 |
49 | Cyanuric acid | 0～160 | 50 | urea | 0.0～5.0 | 51 | hydrogen peroxide | 0.01～3.00 |
52 | boron | 0.1～2.0 | 53 | sulfite | 0.1～5.0 | 54 | ozone | 0.01～2.00 |
55 | lead | 0.1～5.0 | 56 | Total chromium | 0.02～2.00 | 57 | formaldehyde | 0.1～5.0 |
58 | cadmium | 0.02～0.80 | / | / | / | / | ||
