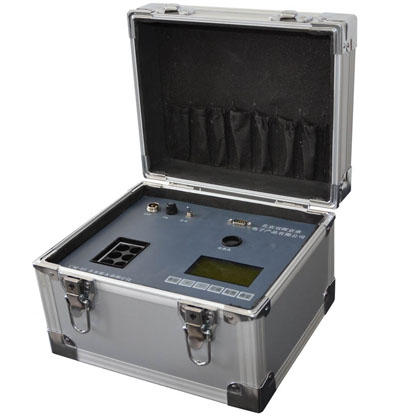

CM-05multi-parameter water quality determinator
Item name: multi parameter water quality measuring instrument
Item No: CM-05
Product brand：
Directions: rivers, centralized drinking water sources, lakes and reservoirs, surface water,
Iron and steel industry, oil processing industry, organic raw materials, plastic rubber
Rubber, pharmaceutical production, dyestuff chemical industry, synthetic detergent, chemical fertilizer
Pesticide, electroplating textile, food processing, beverage manufacturing industry, hotel health
Raw materials, domestic sewage and hospital sewage, scientific research, etc.
(1) humanized operation, special customized light source, simple operation, fast;
(2) the instrument has the factory and user - defined double calibration function, after the closing of the memory zero calibration, no need for each measurement and then zero calibration instrument;
(3) a special computer chip, which can directly display the concentration of the measured water sample;
(4) the design of the waterproof sample colorimetric tank, the prefabricated reagent, has the special light avoiding equipment to ensure the accuracy and repeatability;
(5) suitable for sewage / wastewater, cooling water / boiler water, water treatment water / drinking water, etc..
measurement accuracy：5% whole
Repeatability：3% whole
Chlorine resistance：10000mg/L(COD)
data management：Chinese character / LCD screen
Temperature range：Integrated index（165℃/15min、120℃/20min）
Batch quantity：6Water sample（Self digestion device）
Adaptive environment：temperature：5℃～35℃/humidity：≤80%
Power type：～220V/Maximum power：100W
Weight：4.5Kg
Outline dimension：320mm*330mm*180mm
number | Measurement index | measuring range mg/L | number | Measurement index | measuring range mg/L | number | Measurement index | measuring range mg/L |
1 | COD(low) | 2～150 | 8 | Sulfur ion | 0.05～0.35 | 15 | turbidity | 0.0NTU～1000NTU |
2 | COD(in) | 100～2500 | 9 | copper ion | 0.05～3.00 | 16 | chroma | 0PCU～500PCU |
3 | COD(high) | 2000～15000 | 10 | Total iron | 0.01～3.00 | 17 | Six valence chromium | 0μg/L-1000μg/L |
4 | ammonia nitrogen(low) | 0.01～5.0 | 11 | Nickel ion | 0.02～5.00 | 18 | Nitrate | 0～100.0 |
5 | ammonia nitrogen(high) | 0.1～125 | 12 | residual chlorine | 0.05～5.00 | 19 | nitrite | 0.02～2.50 |
6 | total phosphorus(low) | 0.05～2.0 | 13 | phosphate | 0.02～5.00 | 20 | chlorine dioxide | 0.01～2.00 |
7 | total phosphorus(high) | 0.5～125 | 14 | Manganese ion | 0.02～5.00 | |||
21 | total nitrogen(low) | 0.5～25 | 28 | molybdenum | 0.0～40.0 | 35 | Fluoride ion | 0.00～2.00 |
22 | total nitrogen(high) | 10～150 | 29 | Aluminum ion | 0.00～1.00 | 36 | Total chlorine | 0.00～10.00 |
23 | Total hardness | 1.0～250 | 30 | Zinc ion | 0.02～3.00 | 37 | Silicon dioxide | 0.00～2.00 |
24 | Calcium hardness | 0～400 | 31 | potassium ion | 0.0～50.0 | 38 | Hydrazine | 0μg/L-400μg/L |
25 | Magnesium hardness | 0～150 | 32 | sulfate | 0～150 | 39 | iodine | 0.0～12.5 |
26 | Silver ion | 0.00～1.00 | 33 | Total alkalinity | 5～200 | 40 | bromine | 0.05～8.00 |
27 | Chloride ion | 0.1～20.0 | 34 | cyanide | 0.00～0.20 | 41 | Anionic surfactant | 0.0～3.00 |
