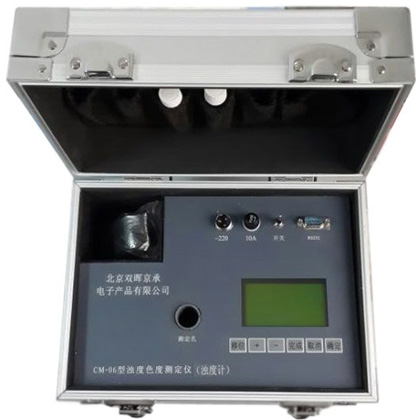

CM-06 Turbidimeter/color analyzer
Product Name: turbidity colorimetric water quality meter
Product model：CM-06
Product brand：
Application direction：Centralized drinking water sources, iron and steel coal mining industry, oil exploitation
Industrial, organic raw materials, plastic rubber, pharmaceutical production, dyes,
Synthetic fatty acid, organic chemical industry, chemical fertilizer and pesticide, electronic textile,
Food processing, beverage manufacturing, hotel sanitary products, domestic sewage
Water and hospital sewage, scientific research, etc..
(1) humanized operation, special customized light source, simple operation, fast;
(2) the instrument has the factory and user - defined double calibration function, after the closing of the memory zero calibration, no need for each measurement and then zero calibration instrument;
(3) a special computer chip, which can directly display the concentration of the measured water sample;
(4) the design of the waterproof sample colorimetric tank, the prefabricated reagent, has the special light avoiding equipment to ensure the accuracy and repeatability;
(5) suitable for sewage / wastewater, cooling water / boiler water, water treatment water / drinking water, etc..
Minimum detection limit：1.0NTU turbidity
1.0PCU chroma
Range (measuring range)：
turbidity：0NTU～100NTU
100NTU～1000NTU
chroma：1.0PCU～500PCU
Indication error：±10% turbidity
±10PCU chroma
Optical system: narrow band interference filter silicon photocell
Optical stability: absorbance in the 20min drift less than 0.002A
Methods of measurement: platinum cobalt colorimetry / infrared scattering
Measurement time: 1min
Data management: Digital
Power type：～220V
Applicable environment：5℃～35℃
Weight：1Kg
Outline dimension：270mm*190mm*170mm
