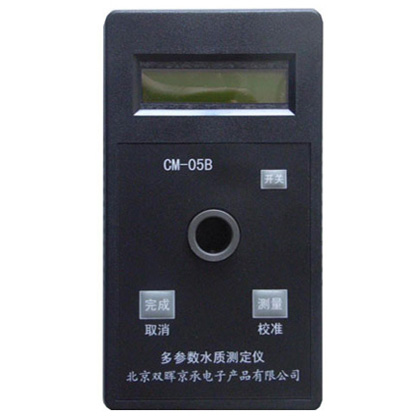

CM-05B multi-parameter water quality determinator
Item name: intelligent multi parameter water quality measuring instrument
Item No: CM-05B
Product brand：
Directions: apply to centralized drinking water sources, rivers, lakes and reservoirs, surface water, steel mining industry, oil processing industry, organic raw materials, plastic rubber material, pharmaceutical production, chemical industry, synthetic dyes paint wash polyester, chemical fertilizer and pesticide, electroplating, textile, food processing, beverage manufacturing, hotel supplies, sanitary sewage and hospital sewage, scientific research.
(1) humanized operation, special customized light source, simple operation, fast;
(2) the instrument has the factory and user - defined double calibration function, after the closing of the memory zero calibration, no need for each measurement and then zero calibration instrument;
(3) a special computer chip, which can directly display the concentration of the measured water sample;
(4) the design of the waterproof sample colorimetric tank, the prefabricated reagent, has the special light avoiding equipment to ensure the accuracy and repeatability;
(5) suitable for sewage / wastewater, cooling water / boiler water, water treatment water / drinking water, etc..
Measuring accuracy: + 8%
Repeatability: + 5%
Chlorine resistance: 10000mg/L (COD)
Optical system: narrow band interference filter silicon photocell
Data management: digital / LCD
To adapt to the environment: temperature: 5 to 35 DEG C / humidity: less than 80%
Power supply type: 5*1.25V rechargeable battery, the total working hours of 300 hours
Measurement mode, 10 minutes automatic shutdown without operation
Maximum power consumption 40W
Weight: 4.5Kg
Dimensions: 175mm*95mm*40mm
number | Measurement index | measuring range mg/L | number | Measurement index | measuring range mg/L | number | Measurement index | measuring range（mg/L） |
1 | COD(low) | 2～150 | 8 | Sulfur ion | 0.05～0.35 | 15 | turbidity | 0.0NTU～1000NTU |
2 | COD(中) | 100～2500 | 9 | copper ion | 0.05～3.00 | 16 | chroma | 0PCU～500PCU |
3 | COD(high) | 2000～15000 | 10 | Total iron | 0.01～3.00 | 17 | Six valence chromium | 0μg/L-1000μg/L |
4 | Ammonia nitrogen (low) | 0.01～5.0 | 11 | Nickel ion | 0.02～5.00 | 18 | Nitrate | 0～100.0 |
5 | Ammonia nitrogen (high) | 0.1～125 | 12 | residual chlorine | 0.05～5.00 | 19 | nitrite | 0.02～2.50 |
6 | Total phosphorus (low) | 0.05～2.0 | 13 | phosphate | 0.02～5.00 | 20 | chlorine dioxide | 0.01～2.00 |
7 | Total phosphorus (high) | 0.5～125 | 14 | Manganese ion | 0.02～5.00 | |||
21 | Total nitrogen (low) | 0.5～25 | 28 | molybdenum | 0.0～40.0 | 35 | Fluoride ion | 0.00～2.00 |
22 | Total nitrogen (high) | 10～150 | 29 | Aluminum ion | 0.00～1.00 | 36 | Total chlorine | 0.00～10.00 |
23 | Total hardness | 1.0～250 | 30 | Zinc ion | 0.02～3.00 | 37 | Silicon dioxide | 0.00～2.00 |
24 | Calcium hardness | 0～400 | 31 | potassium ion | 0.0～50.0 | 38 | Hydrazine | 0μg/L-400μg/L |
25 | Magnesium hardness | 0～150 | 32 | sulfate | 0～150 | 39 | iodine | 0.0～12.5 |
26 | Silver ion | 0.00～1.00 | 33 | Total alkalinity | 5～200 | 40 | bromine | 0.05～8.00 |
27 | Chloride ion | 0.1～20.0 | 34 | cyanide | 0.00～0.20 | 41 | Anionic surfactant | 0.0～3.00 |
