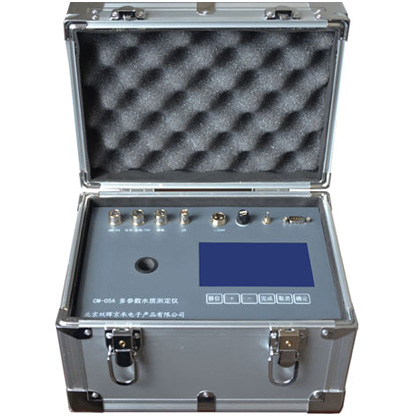

CM-05multi-parameter water quality determinator

  • CM-05multi-parameter water quality determinator

CM-05multi-parameter water quality determinator

Product profile

Item name: multi parameter water quality measuring instrument

Item No: CM-05A

Product brand

Directions: rivers, centralized drinking water sources, lakes and reservoirs, surface water,

Iron and steel industry, oil processing industry, organic raw materials, plastic

Rubber, pharmaceutical production, dye chemical industry, synthetic wash

Chemical fertilizer, pesticide, electroplating, textile, food processing, beverage

Manufacturing, hotel sanitary products, domestic sewage and hospital sewage,

Scientific research



Instrument features


(1) humanized operation, special customized light source, simple operation, fast;

(2) the instrument has the factory and user - defined double calibration function, after the closing of the memory zero calibration, no need for each measurement and then zero calibration instrument;

(3) a special computer chip, which can directly display the concentration of the measured water sample;

(4) the design of the waterproof sample colorimetric tank, the prefabricated reagent, has the special light avoiding equipment to ensure the accuracy and repeatability;

(5) suitable for sewage / wastewater, cooling water / boiler water, water treatment water / drinking water, etc..




Instrument parameters

Measuring accuracy: + 5%

Repeatability: + 3%

Chlorine resistance: 10000mg/L (COD)

Data management: Chinese character / LCD screen

To adapt to the environment: temperature: 5 to 35 DEG C / humidity: less than 80%

Power type: 220V/ maximum power consumption: 20W

Weight: 1.5Kg

Dimensions: 260mm*200mm*180mm


num

Measurement index

measuring range mg/L

num

Measurement index

measuring range mg/L

num

Measurement index

measuring range mg/L

1

COD(low)

2~150

2

COD(中)

100~2500

3

COD(high)

2000~15000

4

ammonia nitrogen(low)

0.01~5.00

5

Ammonia nitrogen (high)

0.1~125.00

6

总磷(low)

0.00~2.5

7

total phosphorus(high)

0.5~125.0

8

Iron ion

0.00~5.00

9

turbidity

0NTU~1000NTU

10

copper ion

0.00~3.00

11

residual chlorine

0.00~5.00

12

chroma

0PCU~500PCU

13

Manganese ion

0.00~5.00

14

nitrite

0.00~2.50

15

Six valence chromium

0μg/L~1000μg/L

16

Nitrate

0.0~100.0

17

chlorine dioxide

0.00~2.00

18

low conductivity

0.0mS/cm~200mS/cm

19

Sulfur ion

0.00~1.00

20

pH

0~14

21

High conductivity

0.0μS/cm~1000μS/cm

22

ORP

±2000mV

23

phosphate

0.00~5.00

24

salinity

0.0度~50.0度

25

temperature

0.0℃~70.0℃

26

dissolved oxygen

0.0~20.0

27

TDS

0.00g/L~200.0g/L

28

Silver ion

0.001~1.000

29

molybdenum

0.0~40.0

30

Calcium and magnesium

0.00~400/150

31

Total hardness

200~500

32

Aluminum ion

0.01~1.00

33

Chloride ion

0.0~20.0

34

Fluoride ion

0.00~2.00

35

potassium ion

0.0~200

36

Total chlorine

0.0~10.0

37

Total alkalinity

0~200

38

Silicon dioxide

0.01~2.00

39

sulfate

0~150

40

cyanide

0.00~0.30

41

iodine

0.0~12.5

42

Zinc ion

0.00~3.00

43

molybdate

0.0~60.0

44

bromine

0.01~8.00

45

Hydrazine

0μg/L~400μg/L

46

Total nitrogen (low)

0.5~25

47

Total nitrogen (high)

10~150

48

Anionic surfactant

0.00~3.00

49

Cyanuric acid

0~160

50

urea

0.0~5.0

51

hydrogen peroxide

0.01~3.00

52

boron

0.1~2.0

53

sulfite

0.1~5.0

54

ozone

0.01~2.00

55

lead

0.1~5.0

56

Total chromium

0.02~2.00

57

formaldehyde

0.1~5.0

58

cadmium

0.02~0.80

/

/

/

 /
